Introduction

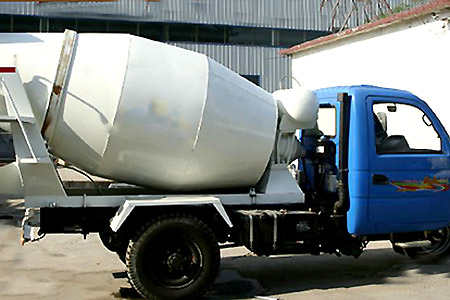

The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.
Advantages
The machine's trait:don not rely on the power of outside ,optimal barycenter and structure designing,beautiful and natrual the whole looking,working smoothly.the hydraulic elements use high quality products of national key leading enterprise ,mechanical parts structre is reasonable,easy and simple to handle and have reiable operation.the car’s mixing drum can keep turning on the road,avoiding the slurry discrete and sediment.It can insure the quality in the process of mixtrue slurry in transportation.
Goods Delivery
Based on good quality and decades of experience, the 1.6cbm Concrete Mixing Truck which is manufactured by HAMAC was exported to different countries. The 1.6cbm Concrete Mixing Truck will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
Technical Parameters
We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.
| Technical data of 1.6cbm | |||
| Name | 1.6cbm mixing truck | Model of engine | LD km160B |
| Chassis model | Wuzheng 1600-1 three wheels series | Engine type | Forced circulation cooled |
| Total weight (kg) | 2560 | Engine displacement (L) | 1.38 |
| Dimension L*W*H(mm) | 5300*1650*2600 | Engine power (kW) | 19.8 |
| Wheel base(mm) | 3000 | Max. standard engine speed(r/min) | 2200 |
| Front overhang(mm) | 400 | Barrel geometric volume (m³) | 2 |
| Rear overhang(mm) | 2200 | Max. mixing volume (m³) | 1.6 |
| Max. gradeability(degree) | 20 | Feed rate (m³) | ≥0.5 |
| Max. speed(km/h) | ≤50 | Discharge rate (m³) | ≥0.8 |
| Turning diameter (m) | ≤15 | Max. rotate speed (r/min) | 6-10 |
| clutch | double dry type clutch | Barrel slope (°) | 13.14 |
| Transmission type | Belt type | Diameter of mixing barrel (mm) | Φ1400 |
| Drive mode | rear wheel drive | Gear box | Ky67-3-c |
| Steering mode | Steering wheel | Hydraulic pump | 50 gear pump |
| Service brake | Single pipeline rear brake | Hydraulic motor | gerotor motor |
| Parking brake | Mechanical rear brake | Water tank volume (L) | 62 |
| Tyre | 825-16 | Water supply way | Air pressure |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
Application Case
The 1.6cbm Concrete Mixing Truck is widely used for different projects all over the world. HAMAC exported the 1.6cbm Concrete Mixing Truck to different countries and got good comments from our clients.
